Astronomical Gearing

Al-Biruni's mechanical calendar



Instruments carrying gearings of toothed wheels were used in the Late Antike or Byzantine period as calendrical devices, some of them displaying the phase (age) of the Moon, its position in the zodiac, and the position of the Sun in the zodiac.

A calendrical device was described by the Persian Muslim scholar and polymath al-Biruni (978-1048).

moon

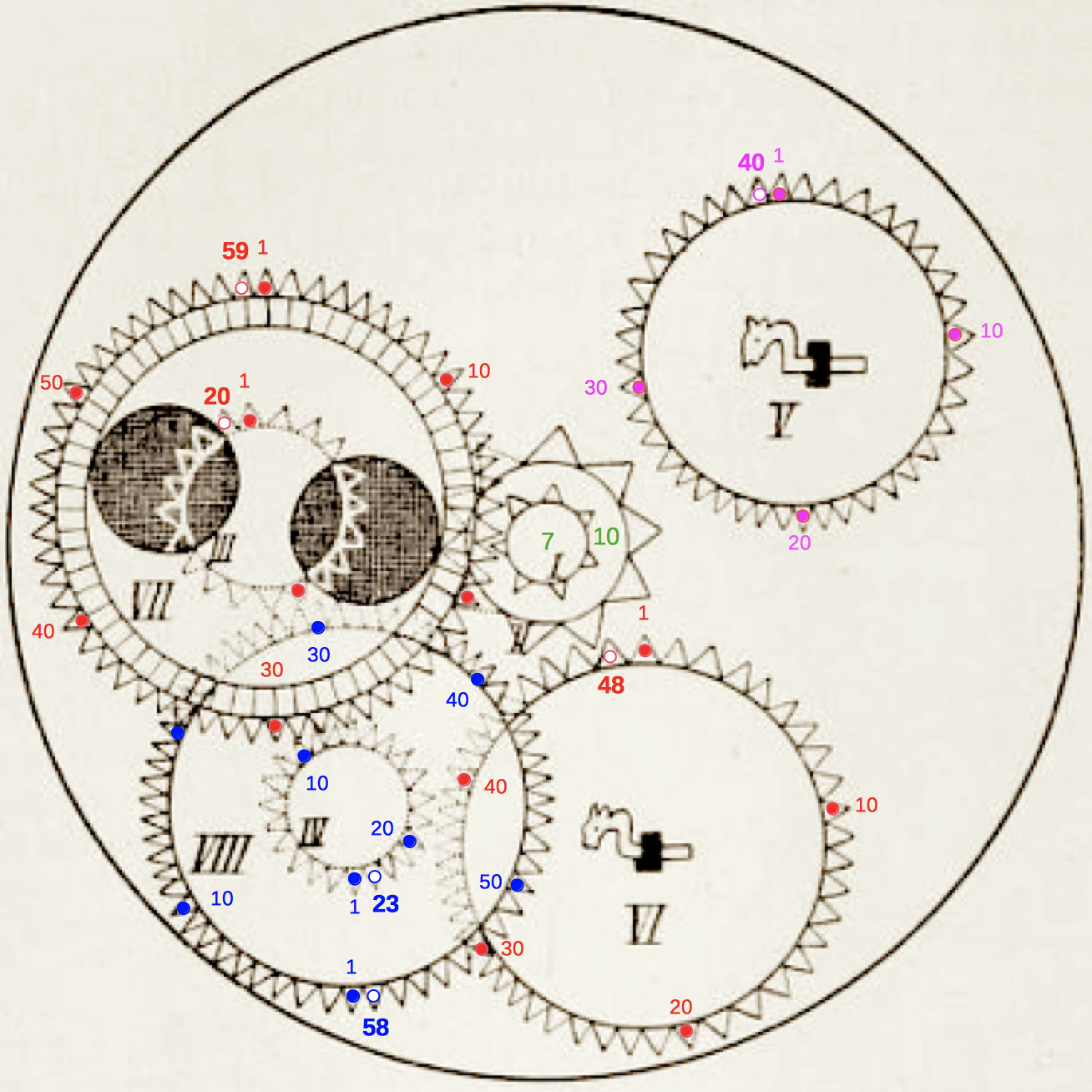

The rotating Moon disc: 59 days rotation period, corresponding to 29.5 days synodic month.

The rotation period of the wheel (39 teeth) for the sidereal month:

sidereal month ration

The rotation period of blue wheel (60 teeth):

ratio

The rotation period of the wheel (49 teeth) for the year:

tropical
                  year


average duration gears error
synodic month
29.530589 days 29.5 days
0.1 %
sidereal month
27.321661 days 27.3 days
0.08 %
tropical year
365.24219 days
365.17895 days
0.02 %



gears average
62 synodic month
62*29.5 d =
1829.0 d
1830.90 d
67 sidereal month
67*27.3 d =
1829.1 d
1830.55 d

5 years
2 d
5 years
4.5 d



full moon
                              2011

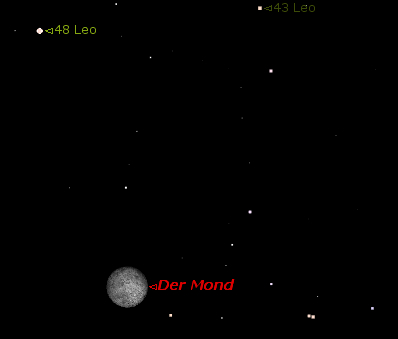

2011 Feb 18, UT 23:00
Full Moon in Leo

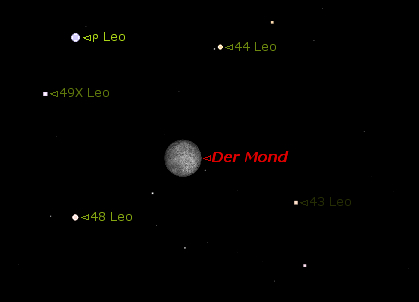

2016 Feb 22, UT 23:00
Full Moon in Leo
1830 days later (5 years 4 days) the position of the full Moon is almost the same with respect to the fixed stars.

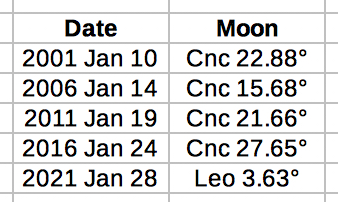

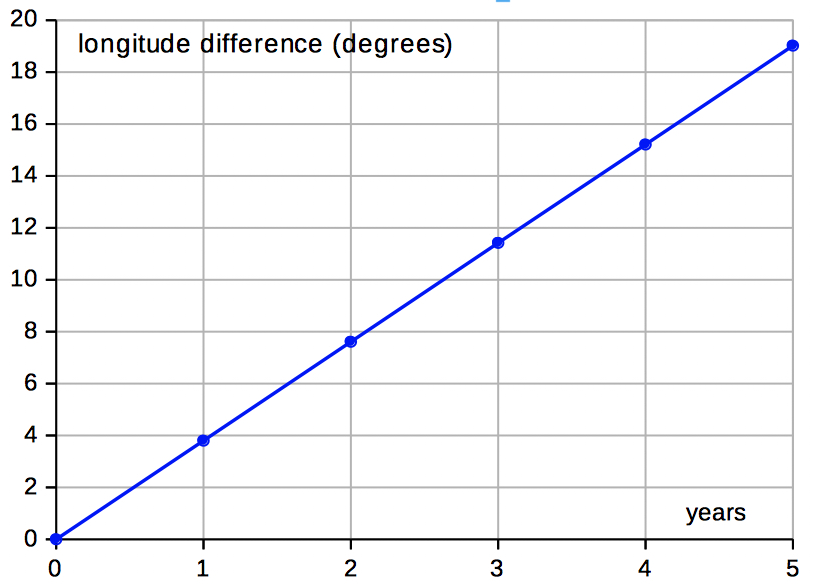

Full Moon
JD Diff days
Long. Moon
Diff Long. Long. Sun Diff Long.
1996 Jan 05 UT 22:08
2450088.369 - 104.80° -
284,86° -
2001 Jan 09 UT 20:24 2451919.350 1830.98 109.65° 4.85° 289,65° 4.80°
2006 Jan 14 UT 09:48 2453749.908 1830.56 114.08° 4.44° 294,09° 4.43°
2011 Jan 19 UT 21:21 2455581.390 1831.48 119.45° 5.36° 299,45° 5.37°
2016 Jan 24 UT 01:46 2457411.573 1830.18 123.49° 4.04° 303,49° 4.04°
2021 Jan 28 UT 19:16 2459243.303 1831.73 129,09° 5.60° 309,09° 5.60°

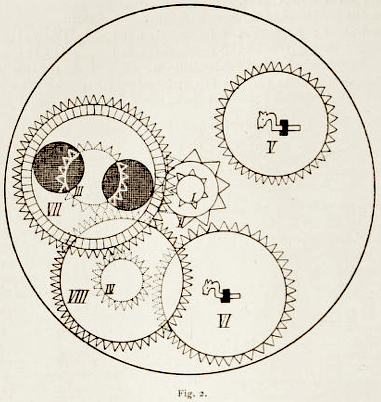

Al-Biruni's Moon Box:
from Wiedemann

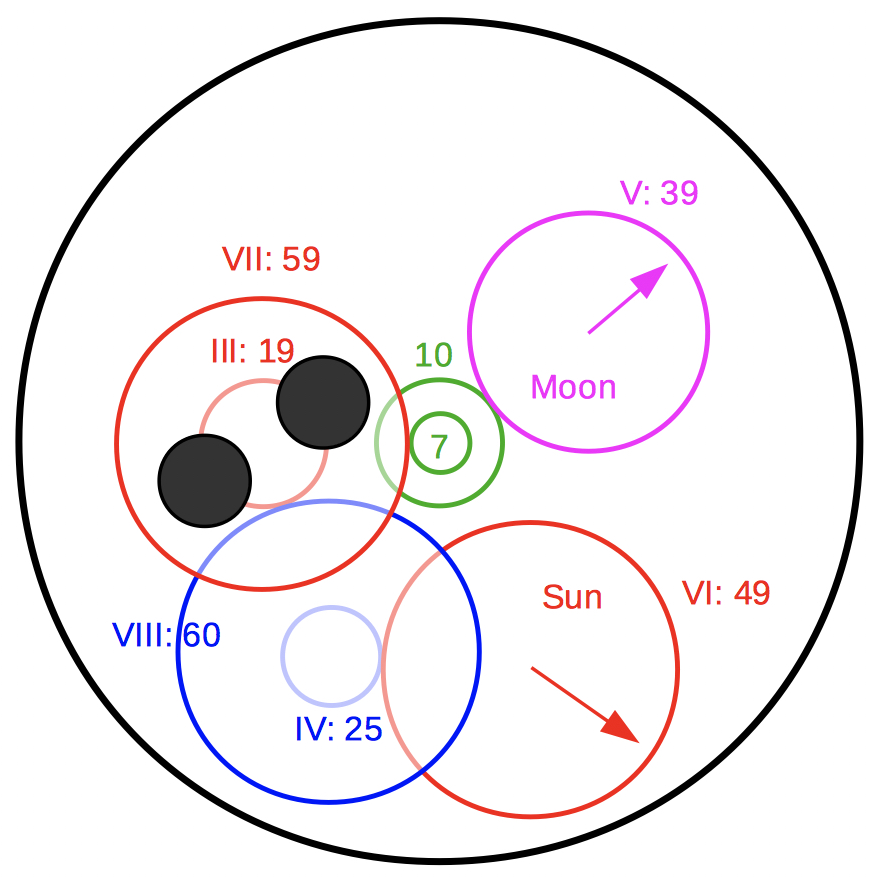

Al Biruni moon Box

Al-Biruni Moon Box
